Text Elements
beepy display
beepy keyboard
power bank
cable connecting power bank to beepy usbc port
could work as like a hand strap type thing
ALTERNATIVELY
beepy display
beepy keyboard

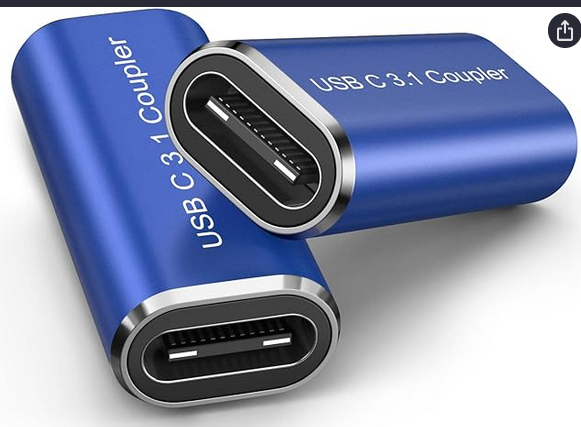

usbc female to female connector like this:

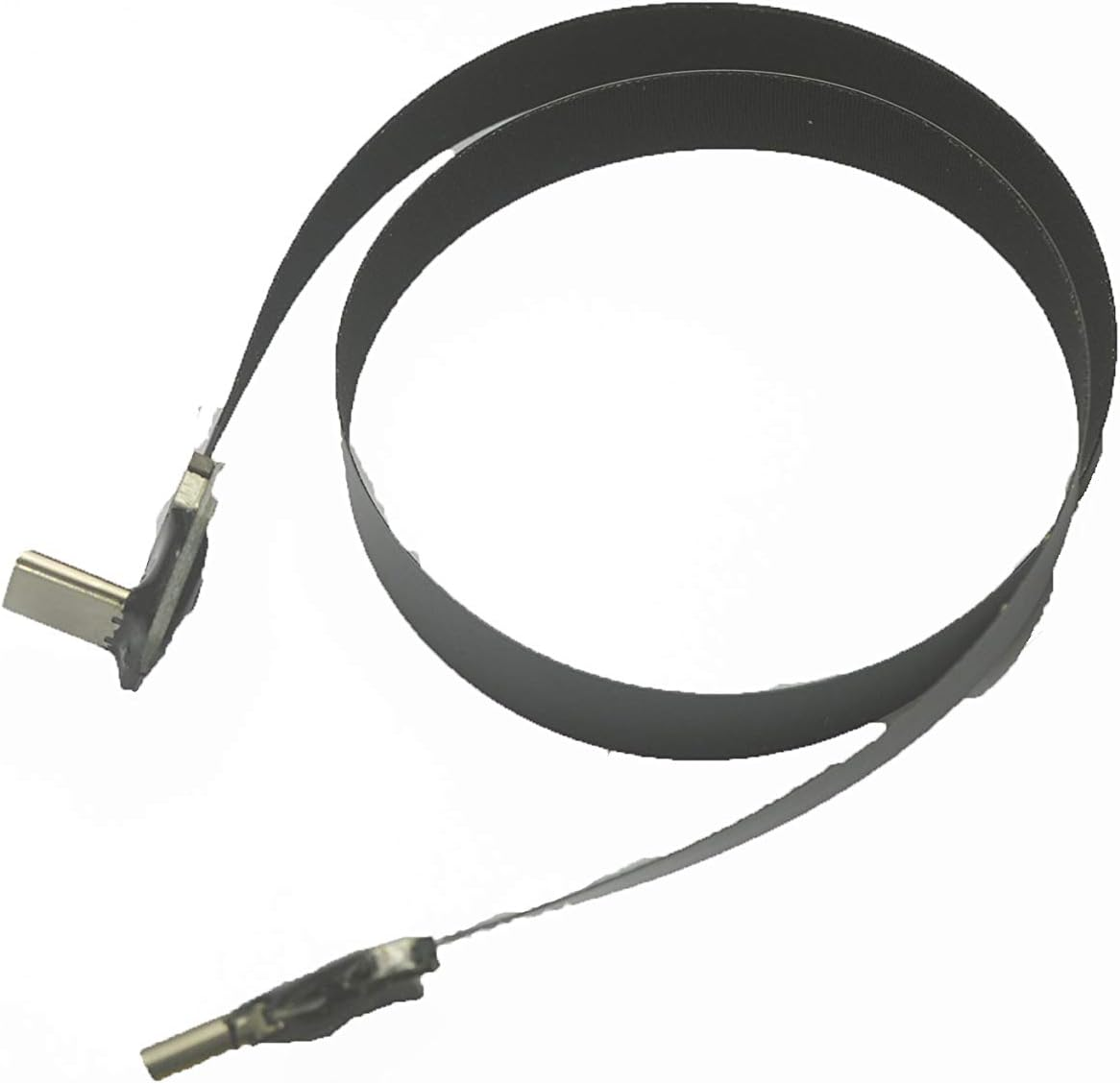

usbc ribbon style cable
problem with these: when it goes in and out of my backpack that back port sticking out is going to get beat up and its probably bad.
this is out of spec and can break things, but SHOULD work.
beepy display
beepy keyboard
beepy keyboard
beepy display
washer attached to top screw
bottom screws are held there by threads within the beepy
lots of requirements for this though: i have to be able to make the bits of plastic to use for this i would likely use the school’s 3D printer this means i have to make a stl to print this means i have to install and learn the basics of some cad software i have to be able to source longer versions of the same screws the beepy is using ( current screws could not do any of this, as they are too short ) i think this is out of scope of what i can feasibly do
